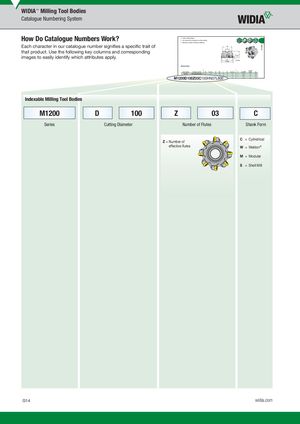

WIDIA™ Milling Tool Bodies
Catalogue Numbering System
How Do Catalogue Numbers Work? • Twelve cutting edges.
• First choice for low depth-of-cut face milling.
• Maximum number of teeth per diameter.
Face Mills
Each character in our catalogue number signifies a specific trait of
that product. Use the following key columns and corresponding
images to easily identify which attributes apply.
n Shell Mills
coolant
order number catalogue number D1 D1 max D D6 L L2 Ap1 max Z max RPM supply kg
3957995 M1200D040Z04HN07 40 48,7 22 38 40 40 3,5 4 15800 Yes 0,26
3957996 M1200D040Z05HN07 40 48,7 22 38 40 40 3,5 5 15800 Yes 0,26
M1200D100Z03C100HN07L800
3957997 M1200D050Z04HN07 50 58,7 22 38 40 40 3,5 4 12700 Yes 0,35
Indexable Milling Tool Bodies
M1200 D 100 Z 03 C
Series Cutting Diameter Number of Flutes Shank Form
C = Cylindrical
Z = Number of
effective flutes W = Weldon®
M = Modular
S = Shell Mill
G14 widia.com
LWID_Master16_IndexableMilling_SectionIntro_G014_G015_Metric_REBRAND.indd
V i WID M 16 I d bl Milli S i I G014 14G015 M i REBRANDN b 12 20158 11AM 11/12/15 8:56 AM
