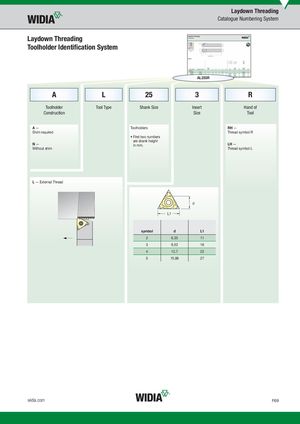

Laydown Threading
Toolholder Identifi cation System
AL253R
A L 25 3 R
| Toolholder | Tool Type | Shank Size | Insert | Hand of |
| Construction | Size | Tool |
A — Toolholders RH —
Shim required Thread symbol R
- First two numbers are shank height
N — in mm. LH —
Without shim Thread symbol L
L — External Thread
d
L1
| symbol | d | L1 | |
| 2 | 6,35 | 11 | |
| 3 | 9,52 | 16 | |
| 4 | 12,7 | 22 | |
| 5 | 15,88 | 27 |
