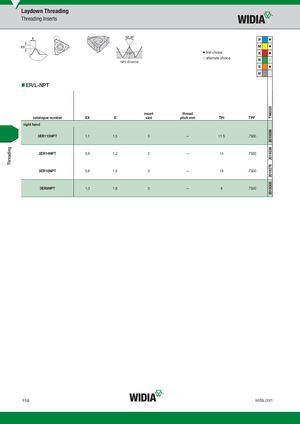

NPT-External
ER/L-NPT
first choice alternate choice
P M K N S H
insert thread
| catalogue number | EX | E | size | pitch mm | TPI | TPF | |||
| right hand | |||||||||
| 3ER115NPT | 1,1 | 1,5 | 3 | — | 11.5 | .7500 |
3ER14NPT 0,9 1,2 3 — 14 .7500
3ER18NPT 0,8 1,0 3 — 18 .7500
3ER8NPT 1,3 1,8 3 — 8 .7500
