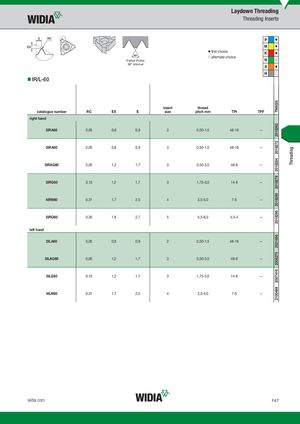

| IR/L-60 | Partial Profile 60° Internal | �first c �altern | i hoice ate choice | P M K N S H | � � � � � | |||
| catalogue number | RC | EX | E | insert size | thread pitch mm | TPI | TPF | TN6025 |
| right hand | ||||||||
| 2IRA60 | 0,05 | 0,8 | 0,9 | 2 | 0,50-1,5 | 48-16 | — | 2018262 |
| 3IRA60 | 0,05 | 0,8 | 0,9 | 3 | 0,50-1,5 | 48-16 | — | 2018272 |
| 3IRAG60 | 0,05 | 1,2 | 1,7 | 3 | 0,50-3,0 | 48-8 | — | 2018284 |
| 3IRG60 4IRN60 | 0,15 0,31 | 1,2 1,7 | 1,7 2,5 | 3 4 | 1,75-3,0 3,5-5,0 | 14-8 7-5 | — — | 2018278 2018290 |
| 5IRQ60 | 0,30 | 1,8 | 2,7 | 5 | 5,5-6,0 | 4.5-4 | — | 18295 |
| left hand | 20 | |||||||
| 2ILA60 3ILAG60 | 0,05 0,05 | 0,8 1,2 | 0,9 1,7 | 2 3 | 0,50-1,5 0,50-3,0 | 48-16 48-8 | — — | 2021656 2008275 |
| 3ILG60 | 0,15 | 1,2 | 1,7 | 3 | 1,75-3,0 | 14-8 | — | 2007419 |
| 4ILN60 | 0,31 | 1,7 | 2,5 | 4 | 3,5-5,0 | 7-5 | — | 2100489 |
