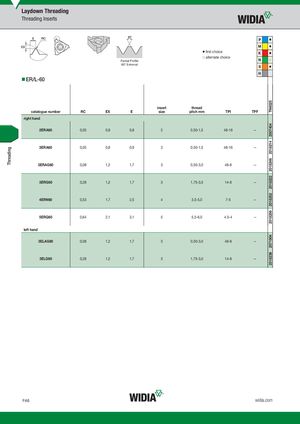

| �ER/L-60 catalogue number | RC EX | E Partial Profile 60° External | insert size | thread pitch mm �first c �altern | TPI i hoice ate choice | TPF TN6025 P � M � K � N � S � H |
| right hand 2ERA60 | 0,05 0,9 | 0,8 | 2 | 0,50-1,5 | 48-16 | — 2007404 |
| 3ERA60 ading | 0,05 0,8 | 0,9 | 3 | 0,50-1,5 | 48-16 | — 2018214 |
| 3ERAG60 Thre | 0,08 1,2 | 1,7 | 3 | 0,50-3,0 | 48-8 | — 2018246 |
| 3ERG60 | 0,28 1,2 | 1,7 | 3 | 1,75-3,0 | 14-8 | — 2018222 |
| 4ERN60 | 0,53 1,7 | 2,5 | 4 | 3,5-5,0 | 7-5 | — 2018252 |
| 5ERQ60 left hand | 0,64 2,1 | 3,1 | 5 | 5,5-6,0 | 4.5-4 | — 2018256 |
| 3ELAG60 | 0,08 1,2 | 1,7 | 3 | 0,50-3,0 | 48-8 | — 2071904 |
| 3ELG60 | 0,28 1,2 | 1,7 | 3 | 1,75-3,0 | 14-8 | — 2018236 |
