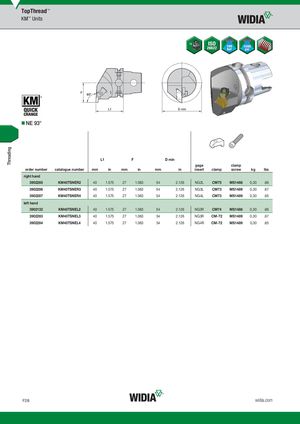

| �NE 93° | |||||||||||||
| hreading | L L | 1 1 | F F | D D | min min | ||||||||
| T | order number | catalogue number | mm | in | mm | in | mm | in | gage insert | clamp | clamp screw | kg | lbs |
| right hand 3902285 | KM40TSNER2 | 40 | 1.575 | 27 | 1.063 | 54 | 2.126 | NG2L | CM75 | MS1488 | 0,30 | .66 | |
| 3902286 | KM40TSNER3 | 40 | 1.575 | 27 | 1.063 | 54 | 2.126 | NG3L | CM73 | MS1489 | 0,30 | .67 | |
| 3902287 | KM40TSNER4 | 40 | 1.575 | 27 | 1.063 | 54 | 2.126 | NG4L | CM73 | MS1489 | 0,30 | .65 | |
| left hand 3902132 | KM40TSNEL2 | 40 | 1.575 | 27 | 1.063 | 54 | 2.126 | NG2R | CM74 | MS1488 | 0,30 | .66 | |
| 3902283 | KM40TSNEL3 | 40 | 1.575 | 27 | 1.063 | 54 | 2.126 | NG3R | CM-72 | MS1489 | 0,30 | .67 | |
| 3902284 | KM40TSNEL4 | 40 | 1.575 | 27 | 1.063 | 54 | 2.126 | NG4R | CM-72 | MS1489 | 0,30 | .65 |
