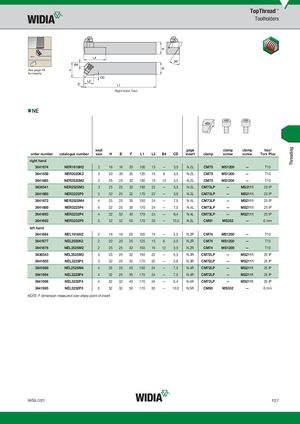

See page F8 for inserts.
Right Hand Tool
NE
| order number | catalogue number | seat size | H | B | F | L1 | L2 | B4 | CD | gage insert | clamp | clamp screw | clamp screw | hex/ Torx Plus |
| right hand | ||||||||||||||
| 3641674 | NER1616H2 | 2 | 16 | 16 | 20 | 100 | 15 | — | 3,5 | N.2L | CM75 | MS1200 | — | T10 |
| 3641658 | NER2020K2 | 2 | 20 | 20 | 25 | 125 | 15 | 6 | 3,5 | N.2L | CM75 | MS1200 | — | T10 |
| 3641665 | NER2525M2 | 2 | 25 | 25 | 32 | 150 | 15 | 12 | 3,5 | N.2L | CM75 | MS1200 | — | T10 |
| 3636541 | NER2525M3 | 3 | 25 | 25 | 32 | 150 | 22 | — | 5,3 | N.3L | CM73LP | — | MS2111 | 25 IP |
| 3641680 | NER3225P3 | 3 | 32 | 25 | 32 | 170 | 22 | — | 3,8 | N.3L | CM73LP | — | MS2111 | 25 IP |
| 3641672 | NER2525M4 | 4 | 25 | 25 | 35 | 150 | 24 | — | 7,5 | N.4L | CM73LP | — | MS2111 | 25 IP |
| 3641689 | NER3225P4 | 4 | 32 | 25 | 35 | 170 | 24 | — | 7,5 | N.4L | CM73LP | — | MS2111 | 25 IP |
| 3641693 | NER3232P4 | 4 | 32 | 32 | 40 | 170 | 24 | — | 6,4 | N.4L | CM73LP | — | MS2111 | 25 IP |
| 3641692 | NER3232P5 | 5 | 32 | 32 | 50 | 170 | 35 | — | 10,5 | N.5L | CM81 | MS352 | — | 6 mm |
| left hand | ||||||||||||||
| 3641684 | NEL1616H2 | 2 | 16 | 16 | 20 | 100 | 15 | — | 3,5 | N.2R | CM74 | MS1200 | — | T10 |
| 3641677 | NEL2020K2 | 2 | 20 | 20 | 25 | 125 | 15 | 6 | 3,5 | N.2R | CM74 | MS1200 | — | T10 |
| 3641676 | NEL2525M2 | 2 | 25 | 25 | 32 | 150 | 15 | 12 | 3,5 | N.2R | CM74 | MS1200 | — | T10 |
| 3636543 | NEL2525M3 | 3 | 25 | 25 | 32 | 150 | 22 | — | 5,3 | N.3R | CM72LP | — | MS2111 | 25 IP |
| 3641685 | NEL3225P3 | 3 | 32 | 25 | 32 | 170 | 22 | — | 3,8 | N.3R | CM72LP | — | MS2111 | 25 IP |
| 3641668 | NEL2525M4 | 4 | 25 | 25 | 35 | 150 | 24 | — | 7,5 | N.4R | CM72LP | — | MS2111 | 25 IP |
| 3641694 | NEL3225P4 | 4 | 32 | 25 | 35 | 170 | 24 | — | 7,5 | N.4R | CM72LP | — | MS2111 | 25 IP |
| 3641696 | NEL3232P4 | 4 | 32 | 32 | 40 | 170 | 24 | — | 6,4 | N.4R | CM72LP | — | MS2111 | 25 IP |
| 3641695 | NEL3232P5 | 5 | 32 | 32 | 50 | 170 | 35 | — | 10,5 | N.5R | CM80 | MS352 | — | 6 mm |
