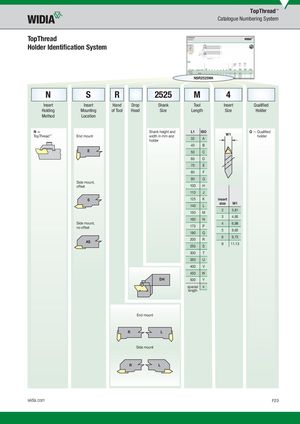

TopThread
Holder Identifi cation System
NSR2525M4
| N | S | R | 2525 | M | 4 | ||||
| Insert | Insert | Hand | Drop | Shank | Tool | Insert | Qualifi ed | ||
| Holding | Mounting | of Tool | Head | Size | Length | Size | Holder |
Method Location
| Shank height and N — L1 | ISO |
| width in mm and End mount TopThread ™ | |
| 32 | A |
| holder | |
| 40 | B |
| E 50 | C |
| 60 | D |
| 70 | E |
| 80 | F |
| 90 | G |
| Side mount, | |
| offset 100 | H |
| 110 | J |
| S 125 | K |
| 140 | L |
| 150 | M |
| 160 | N |
| Side mount, | |
| no offset 170 | P |
| 180 | Q |
| 200 | R |
| AS | |
| 250 | S |
| 300 | T |
| 350 | U |
| 400 | V |
| 450 | W |
| DH 500 | Y |
special x length
Q — Qualifi ed W1 holder
insert
| size | W1 |
| 2 | 3,81 |
| 3 | 4,95 |
| 4 | 6,98 |
| 5 | 9,65 |
| 6 | 9,73 |
| 8 | 11,13 |
End mount
R L
Side mount
R L
