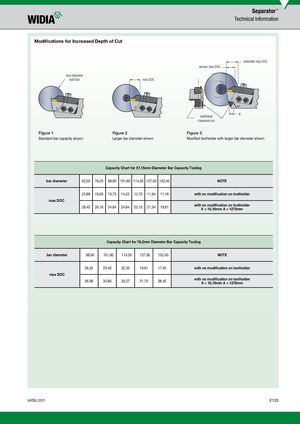

Modifications for Increased Depth of Cut
max diameter solid bar max DOC
extended max DOC normal max DOC
Aº X additional clearance cut
| Figure 1 | Figure 2 | Figure 3 |
| Standard bar capacity shown | Larger bar diameter shown | Modified toolholder with larger bar diameter shown |
| Capacit | y Chart f | or 57,15 | mm Dia | meter Bar Cap | acity Tooling | |||
| bar diameter | 63,50 | 76,20 | 88,90 | 101,60 | 114,30 | 127,00 | 152,40 | NOTE |
| max DOC | 23,88 28,45 | 19,05 26,16 | 15,75 24,64 | 14,22 24,64 | 12,70 22,10 | 11,94 21,34 | 11,18 19,81 | with no modification on toolholder with no modification on toolholder X = 10,16mm A = 1270mm |
| Capaci | ty Chart fo | r 76,2mm D | iameter Bar Capa | city Tooling | ||
| bar diameter | 88,90 | 101,60 | 114,30 | 127,00 | 152,40 | NOTE |
| 28,45 | 25,40 | 22,35 | 19,81 | 17,53 | with no modification on toolholder | |
| max DOC | 36,58 | 34,80 | 33,27 | 31,75 | 28,45 | with no modification on toolholder X = 10,16mm A = 1270mm |
