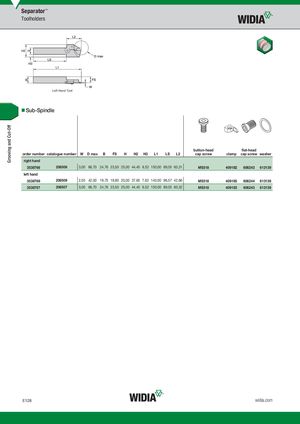

Left Hand Tool
Sub-Spindle
| order number c | atalogue number | W | D max | B FS | H | H2 | H3 | L1 | LS | L2 | button-head cap screw | clamp | fl at-head cap screw | washer |
| right hand | ||||||||||||||
| 3538766 | 206506 | 3,00 | 66,70 | 24,76 23,50 | 25,00 | 44,45 | 9,52 | 150,00 | 89,05 | 60,31 | MS518 | 409182 | 606243 | 613139 |
| left hand | ||||||||||||||
| 3538769 | 206509 | 2,50 | 42,00 | 19,75 18,80 | 20,00 | 37,65 | 7,62 | 140,00 | 96,57 | 42,66 | MS518 | 409185 | 606244 | 613139 |
| 3538767 | 206507 | 3,00 | 66,70 | 24,76 23,50 | 25,00 | 44,45 | 9,52 | 150,00 | 89,05 | 60,32 | MS518 | 409183 | 606243 | 613139 |
