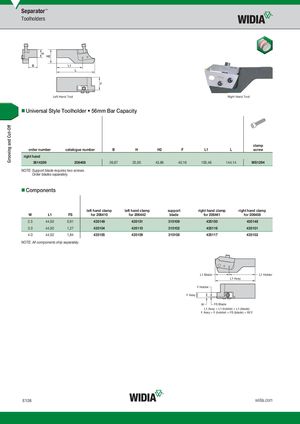

Left Hand Tool Right Hand Tool
- Universal Style Toolholder • 56mm Bar Capacity
clamp
| order number | catalogue number | B | H | H2 | F | L1 | L | screw | |||
| right hand | |||||||||||
| 3614289 | 206408 | 26,97 | 25,00 | 43,66 | 40,16 | 105,46 | 144,14 | MS1294 |
NOTE: Support blade requires two screws. Order blades separately.
- Components
left hand clamp left hand clamp support right hand clamp right hand clamp
W L1 FS for 206410 for 206442 blade for 206441 for 206408
| W | L1 | FS | left hand clamp for 206410 | left hand clamp for 206442 | support blade | right hand clamp for 206441 | right hand clamp for 206408 |
| 2.5 | 44,50 | 0,91 | 435149 | 435151 | 310109 | 435150 | 435148 |
| 3.0 | 44,50 | 1,27 | 435104 | 435110 | 310102 | 435116 | 435101 |
| 4.0 | 44,50 | 1,84 | 435105 | 435109 | 310108 | 435117 | 435102 |
L1 Blade L1 Holder L1 Assy
F Holder
F Assy
W FS Blade L1 Assy = L1 (holder) + L1 (blade) F Assy = F (holder) + FS (blade) + W/2
