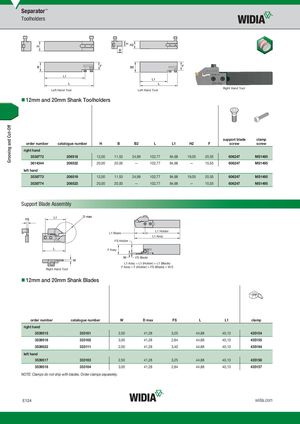

Right Hand Tool Left Hand Tool Left Hand Tool
- 12mm and 20mm Shank Toolholders
support blade clamp
| order number | catalogue number | H | B | B2 | L L1 | H2 | F | screw | screw | ||
| right hand | |||||||||||
| 3538772 | 206518 | 12,00 | 11,53 | 24,99 | 102,77 | 84,68 | 19,05 | 20,55 | 606247 | MS1495 | |
| 3614344 | 206522 | 20,00 | 20,00 | — | 102,77 | 84,68 | — | 15,55 | 606247 | MS1495 | |
| left hand | |||||||||||
| 3538773 | 206519 | 12,00 | 11,53 | 24,99 | 102,77 | 84,68 | 19,05 | 20,55 | 606247 | MS1495 | |
| 3538774 | 206523 | 20,00 | 20,00 | — | 102,77 | 84,68 | — | 15,55 | 606247 | MS1495 |
Support Blade Assembly
Right Hand Tool
- 12mm and 20mm Shank Blades
L1 Holder L1 Blade L1 Assy FS Holder
F Assy
FS Blade L1 Assy = L1 (Holder) + L1 (Blade) F Assy = F (Holder) + FS (Blade) + W/2
| order number | catalogue number | W | D max | FS | L | L1 | clamp | |||
| right hand | ||||||||||
| 3539515 | 333101 | 2,50 | 41,28 | 3,25 | 44,88 | 40,13 | 435154 |
| order number | catalogue number | W | D max | FS | L | L1 | clamp |
| right hand | |||||||
| 3539515 | 333101 | 2,50 | 41,28 | 3,25 | 44,88 | 40,13 | 435154 |
| 3539516 | 333102 | 3,00 | 41,28 | 2,84 | 44,88 | 40,13 | 435155 |
| 3539522 | 333111 | 2,00 | 41,28 | 3,40 | 44,88 | 40,13 | 435194 |
| left hand | |||||||
| 3539517 | 333103 | 2,50 | 41,28 | 3,25 | 44,88 | 40,13 | 435156 |
| 3539518 | 333104 | 3,00 | 41,28 | 2,84 | 44,88 | 40,13 | 435157 |
