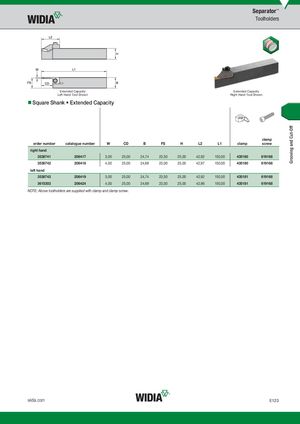

Extended Capacity Extended Capacity Left Hand Tool Shown Right Hand Tool Shown
Square Shank • Extended Capacity
| order number | catalogue number | W | CD | B | FS | H | L2 | L1 | clamp | clamp screw |
| right hand | ||||||||||
| 3538741 | 206417 | 3,00 | 25,00 | 24,74 | 23,50 | 25,00 | 42,92 | 150,00 | 435180 | 619168 |
| 3538742 | 206418 | 4,00 | 25,00 | 24,69 | 23,00 | 25,00 | 42,97 | 150,00 | 435180 | 619168 |
| left hand | ||||||||||
| 3538743 | 206419 | 3,00 | 25,00 | 24,74 | 23,50 | 25,00 | 42,92 | 150,00 | 435181 | 619168 |
| 3615303 | 206424 | 4,00 | 25,00 | 24,69 | 23,00 | 25,00 | 42,96 | 150,00 | 435181 | 619168 |
NOTE: Above toolholders are supplied with clamp and clamp screw.
