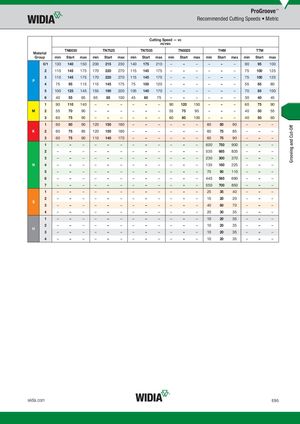

| C | utting S m/ | peed — min | vc | |||||||||||||||
| Material | TN6030 | TN7525 | TN7535 | TN8025 | THM | TTM | ||||||||||||
| Group | min | Start | max | min | Start | max | min | Start | max | min | Start | max | min | Start | max | min | Start | max |
| 0/1 | 130 | 140 | 150 | 200 | 215 | 230 | 140 | 175 | 210 | – | – | – | – | – | – | 90 | 95 | 100 |
| 2 | 110 | 145 | 175 | 170 | 220 | 270 | 115 | 145 | 175 | – | – | – | – | – | – | 75 | 100 | 125 |
| P 3 | 110 | 145 | 175 | 170 | 220 | 270 | 115 | 145 | 175 | – | – | – | – | – | – | 75 | 100 | 125 |
| 4 | 75 | 95 | 115 | 115 | 145 | 175 | 75 | 100 | 120 | – | – | – | – | – | – | 55 | 65 | 80 |
| 5 | 100 | 125 | 145 | 155 | 190 | 220 | 105 | 140 | 170 | – | – | – | – | – | – | 70 | 85 | 100 |
| 6 | 40 | 55 | 65 | 65 | 85 | 100 | 45 | 60 | 75 | – | – | – | – | – | – | 30 | 40 | 45 |
| 1 | 90 | 110 | 140 | – | – | – | – | – | – | 90 | 120 | 150 | – | – | – | 60 | 75 | 90 |
| M 2 | 55 | 70 | 90 | – | – | – | – | – | – | 55 | 75 | 95 | – | – | – | 40 | 50 | 55 |
| 3 | 60 | 75 | 95 | – | – | – | – | – | – | 60 | 80 | 100 | – | – | – | 40 | 50 | 60 |
| 1 | 60 | 80 | 90 | 120 | 150 | 180 | – | – | – | – | – | – | 60 | 80 | 90 | – | – | – |
| K 2 | 60 | 75 | 85 | 120 | 150 | 180 | – | – | – | – | – | – | 60 | 75 | 85 | – | – | – |
| 3 | 60 | 75 | 90 | 110 | 140 | 170 | – | – | – | – | – | – | 60 | 75 | 90 | – | – | – |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | 600 | 750 | 900 | – | – | – |
| 2 | – | – | – | – | – | – | – | – | – | – | – | – | 535 | 685 | 835 | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 230 | 300 | 370 | – | – | – |
| N 4 | – | – | – | – | – | – | – | – | – | – | – | – | 135 | 180 | 225 | – | – | – |
| 5 | – | – | – | – | – | – | – | – | – | – | – | – | 70 | 90 | 110 | – | – | – |
| 6 | – | – | – | – | – | – | – | – | – | – | – | – | 445 | 565 | 690 | – | – | – |
| 7 | – | – | – | – | – | – | – | – | – | – | – | – | 550 | 700 | 850 | – | – | – |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | 25 | 35 | 40 | – | – | – |
| S 2 | – | – | – | – | – | – | – | – | – | – | – | – | 15 | 20 | 20 | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 40 | 60 | 70 | – | – | – |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | 20 | 30 | 35 | – | – | – |
| 1 | – | – | – | – | – | – | – | – | – | – | – | – | 10 | 20 | 35 | – | – | – |
| H 2 | – | – | – | – | – | – | – | – | – | – | – | – | 10 | 20 | 35 | – | – | – |
| 3 | – | – | – | – | – | – | – | – | – | – | – | – | 10 | 20 | 35 | – | – | – |
| 4 | – | – | – | – | – | – | – | – | – | – | – | – | 10 | 20 | 35 | – | – | – |
