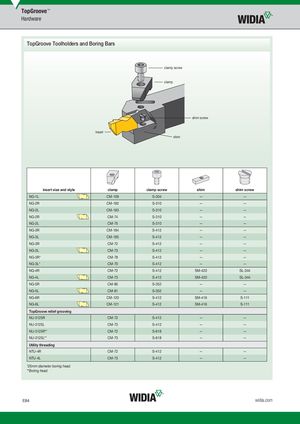

TopGroove Toolholders and Boring Bars
clamp screw
clamp
shim screw
insert shim
insert size and style clamp clamp screw shim shim screw
| insert size and style | clamp | clamp screw | shim | shim screw |
| NG-1L | CM-109 | S-304 | — | — |
| NG-2R | CM-182 | S-310 | — | — |
| NG-2L | CM-183 | S-310 | — | — |
| NG-2R | CM-74 | S-310 | — | — |
| NG-2L | CM-75 | S-310 | — | — |
| NG-3R | CM-184 | S-412 | — | — |
| NG-3L | CM-185 | S-412 | — | — |
| NG-3R | CM-72 | S-412 | — | — |
| NG-3L | CM-73 | S-412 | — | — |
| NG-3R | CM-78 | S-412 | — | — |
| NG-3L | CM-70 | S-412 | — | — |
| NG-4R | CM-72 | S-412 | SM-420 | SL-344 |
| NG-4L | CM-73 | S-412 | SM-420 | SL-344 |
| NG-5R | CM-80 | S-352 | — | — |
| NG-5L | CM-81 | S-352 | — | — |
| NG-6R | CM-120 | S-412 | SM-416 | S-111 |
| NG-6L | CM-121 | S-412 | SM-416 | S-111 |
| TopGroove reliefgrooving | ||||
| NU-3125R | CM-72 | S-412 | — | — |
| NU-3125L | CM-73 | S-412 | — | — |
| NU-3125R | CM-72 | S-618 | — | — |
| NU-3125L | CM-73 | S-618 | — | — |
| Utility threading | ||||
| NTU-4R | CM-72 | S-412 | — | — |
| NTU-4L | CM-73 | S-412 | — | — |
