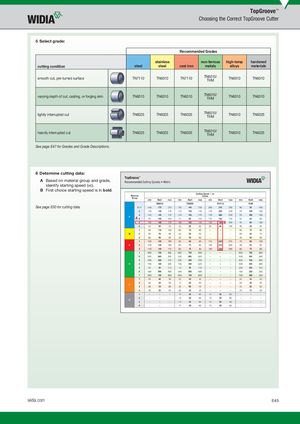

5 Select grade:
Recommended Grades
| stainless | non-ferrous | high-temp | hardened | |||
| cutting condition | steel | steel | cast iron | metals | alloys | materials |
TN6010/
smooth cut, pre-turned surface TN7110 TN6010 TN7110 TN6010 TN6010
THM
TN6010/
varying depth of cut, casting, or forging skin TN6010 TN6010 TN6010 TN6010 TN6010
THM
TN6010/
lightly interrupted cut TN6025 TN6025 TN6025 TN6010 TN6025
THM
TN6010/
heavily interrupted cut TN6025 TN6025 TN6025 TN6010 TN6025
THM
See page E47 for Grades and Grade Descriptions.
6 Determine cutting data: A Based on material group and grade, identify starting speed (vc). B First choice starting speed is in bold.
See page E50 for cutting data.
A B
