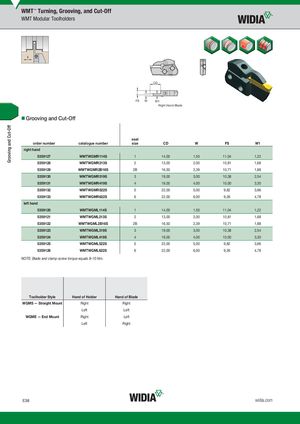

CD
FS W W1
Right Hand Blade Grooving and Cut-Off
| order number | catalogue number | seat size | CD | W | FS | W1 |
| right hand | ||||||
| 5359127 | WMTWGMR114S | 1 | 14,00 | 1,50 | 11,04 | 1,22 |
| 5359128 | WMTWGMR213S | 2 | 13,00 | 2,00 | 10,81 | 1,68 |
| 5359129 | WMTWGMR2B16S | 2B | 16,50 | 2,39 | 10,71 | 1,88 |
| 5359130 | WMTWGMR319S | 3 | 19,00 | 3,00 | 10,38 | 2,54 |
| 5359131 | WMTWGMR419S | 4 | 19,00 | 4,00 | 10,00 | 3,30 |
| 5359132 | WMTWGMR522S | 5 | 22,00 | 5,00 | 9,82 | 3,66 |
| 5359133 | WMTWGMR622S | 6 | 22,00 | 6,00 | 9,26 | 4,78 |
| left hand | ||||||
| 5359120 | WMTWGML114S | 1 | 14,00 | 1,50 | 11,04 | 1,22 |
| 5359121 | WMTWGML213S | 2 | 13,00 | 2,00 | 10,81 | 1,68 |
| 5359122 | WMTWGML2B16S | 2B | 16,50 | 2,39 | 10,71 | 1,88 |
| 5359123 | WMTWGML319S | 3 | 19,00 | 3,00 | 10,38 | 2,54 |
| 5359124 | WMTWGML419S | 4 | 19,00 | 4,00 | 10,00 | 3,30 |
| 5359125 | WMTWGML522S | 5 | 22,00 | 5,00 | 9,82 | 3,66 |
| 5359126 | WMTWGML622S | 6 | 22,00 | 6,00 | 9,26 | 4,78 |
Toolholder Style Hand of Holder Hand of Blade
WGMS — Straight Mount Right Right
| Toolholder Style | Hand of Holder | Hand of Blade |
| WGMS — Straight Mount | Right | Right |
| Left | Left | |
| WGME — End Mount | Right | Left |
| Left | Right |
