F Holder
F Assy
L1 Holder L1 Assy F Assy = F (Holder) + CD (Blade) L1 Assy = L1 (Holder) + FS (Blade) + W/2 Right Hand Tool

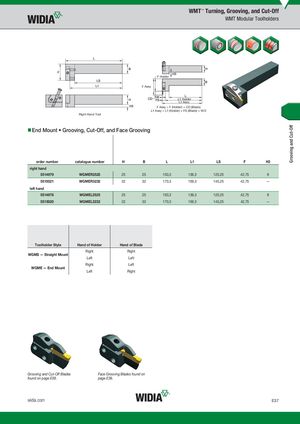

End Mount • Grooving, Cut-Off, and Face Grooving
| order number | catalogue number | H | B | L | L1 | LS | F | H3 |
| right hand | ||||||||
| 5514979 | WGMER2525 | 25 | 25 | 150,3 | 139,3 | 125,25 | 42,75 | 9 |
| 5515021 | WGMER3232 | 32 | 32 | 170,3 | 159,3 | 145,25 | 42,75 | — |
| left hand | ||||||||
| 5514978 | WGMEL2525 | 25 | 25 | 150,3 | 139,3 | 125,25 | 42,75 | 9 |
| 5515020 | WGMEL3232 | 32 | 32 | 170,3 | 159,3 | 145,25 | 42,75 | — |
Toolholder Style Hand of Holder Hand of Blade
Right Right
| Toolholder Style | Hand of Holder | Hand of Blade |
| WGMS — Straight Mount | Right Left | Right Left |
| WGME — End Mount | Right Left | Left Right |
Grooving and Cut-Off Blades Face Grooving Blades found on found on page E38. page E39.
