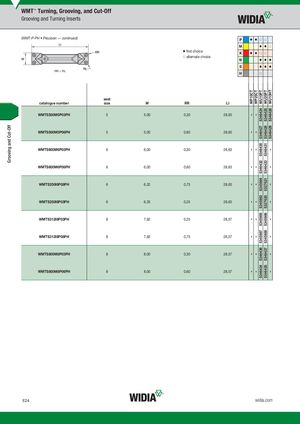

| (WMT-P-PH • Precision — continued) | P | � � � � | |||
| RR = RL | �first choice �alternate choice | M K N S H | � � � � � � � � � � � � � � | ||
| catalogue number seat size | W | RR | LI | WP10CT WP25CT WU10PT WU25PT WU10HT | |
| WMTS500M5P03PH 5 | 5,00 | 0,30 | 28,63 | – – 5346424 5346425 5346426 | |
| WMTS500M5P06PH 5 d Cut-Off | 5,00 | 0,60 | 28,63 | – – 5346427 5346428 5346429 | |
| WMTS600M6P03PH 6 ooving an | 6,00 | 0,30 | 28,63 | – – 5346430 5346431 – | |
| WMTS600M6P06PH 6 Gr | 6,00 | 0,60 | 28,63 | – – 5346432 5346433 – | |
| WMTS250I6P08PH 6 | 6,32 | 0,75 | 28,63 | – – 5345984 5327621 – | |
| WMTS250I6P03PH 6 | 6,35 | 0,25 | 28,63 | – – 5345983 5327620 – | |
| WMTS312I8P03PH 8 | 7,92 | 0,25 | 28,57 | – – 5345985 5345986 – | |
| WMTS312I8P08PH 8 | 7,92 | 0,75 | 28,57 | – – 5345987 5345988 – | |
| WMTS800M8P03PH 8 | 8,00 | 0,30 | 28,57 | – – 5346436 5346437 – | |
| WMTS800M8P06PH 8 | 8,00 | 0,60 | 28,57 | – – 5346434 5346435 – |
