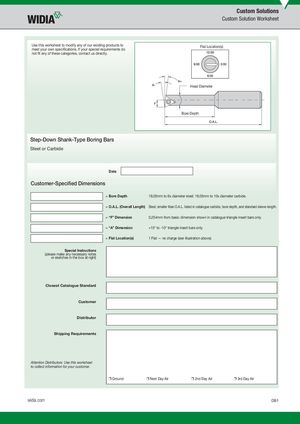

Custom Solutions
Custom Solution Worksheet
Use this worksheet to modify any of our existing products to Flat Location(s) meet your own specifi cations. If your special requirements do not fi t any of these categories, contact us directly.
Head Diameter
Bore Depth
Step-Down Shank-Type Boring Bars
Steel or Carbide
Date
Customer-Specifi ed Dimensions
| = Bore Depth | 19,05mm to 6x diameter steel; 19,05mm to 10x diameter carbide. |
| = O.A.L. (Overall Length) | Steel; smaller than O.A.L. listed in catalogue carbide, bore depth, and standard sleeve length. |
| = “F” Dimension | 0,254mm from basic dimension shown in catalogue triangle insert bars only. |
| = “A” Dimension | +10° to -10° triangle insert bars only. |
| = Flat Location(s) | 1 Flat — no charge (see illustration above). |
Special Instructions (please make any necessary notes or sketches in the box at right)
Closest Catalogue Standard
Customer
Distributor
Shipping Requirements
Attention Distributors: Use this worksheet to collect information for your customer.
UGround UNext Day Air U2nd Day Air U3rd Day Air
