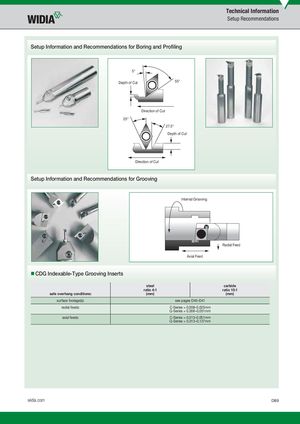

Setup Information and Recommendations for Boring and Profi ling
5°
Depth of Cut 55°
Direction of Cut 25° 27.5° Depth of Cut
Direction of Cut
Setup Information and Recommendations for Grooving
Internal Grooving
Radial Feed
Axial Feed
CDG Indexable-Type Grooving Inserts
steel carbide ratio 4:1 ratio 10:1
safe overhang conditions: (mm) (mm)
surface footage(s): see pages D40–D41 radial feeds: C-Series = 0,008–0,025mm Q-Series = 0,008–0,051mm axial feeds: C-Series = 0,013–0,051mm Q-Series = 0,013–0,127mm
