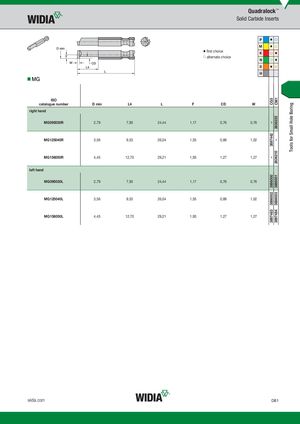

Quadralock™
Solid Carbide Inserts
P
M
first choice
K
alternate choice
N
S
H
MG
CM1
CG5
ISO
Tools for Small Hole Boring
catalogue number D min L4 L F CD W
right hand
2836223
MG095030R 2,79 7,93 24,44 1,17 0,76 0,76
–
3897442
MG125040R 3,56 9,53 26,04 1,55 0,89 1,02
–
2836210
MG156050R 4,45 12,70 29,21 1,93 1,27 1,27
–
left hand
3886000
3886001
MG095030L 2,79 7,93 24,44 1,17 0,76 0,76
3886002
3886003
MG125040L 3,56 9,53 26,04 1,55 0,89 1,02
3897483
3897484
MG156050L 4,45 12,70 29,21 1,93 1,27 1,27
widia.com D81
WID_Master16_Turning_Circle_D080_D081_Metric_REBRAND.indd 81 L V i WID M 16 T i Ci l D080 D081 M i REBRANDN b 1120157
11/11/15 49AM
9:25 AM
