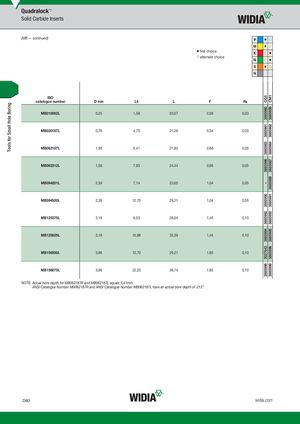

Quadralock™
Solid Carbide Inserts
(MB — continued) P
M
first choice
K
alternate choice
N
S
H
CM1
CG5
ISO
catalogue number D min L4 L F R¡
Tools for Small Hole Boring
3885960
3885959
MB010062L 0,25 1,58 20,57 0,09 0,03
3885961
3885962
MB030187L 0,76 4,75 21,26 0,34 0,03
3885983
3885984
MB062187L 1,58 5,41 21,92 0,66 0,05
3885986
3885987
MB062312L 1,58 7,93 24,44 0,66 0,05
3885989
MB094281L 2,39 7,14 23,65 1,04 0,05
–
3885990
3885991
MB094500L 2,39 12,70 29,21 1,04 0,05
3885992
3885993
MB125375L 3,18 9,53 26,04 1,45 0,10
3885994
3885995
MB125625L 3,18 15,88 32,39 1,45 0,10
3027643
3885996
MB156500L 3,96 12,70 29,21 1,85 0,10
3885998
MB156875L 3,96 22,23 38,74 1,85 0,10 3885999
NOTE: Actual bore depth for MB062187R and MB062187L equals 5,41mm.
ANSI Catalogue Number MB062187R and ANSI Catalogue Number MB062187L have an actual bore depth of .213”.
