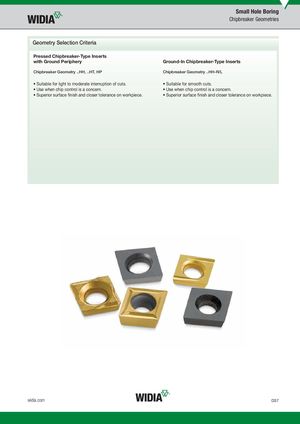

Geometry Selection Criteria
Pressed Chipbreaker-Type Inserts
| with Ground Periphery | Ground-In Chipbreaker-Type Inserts |
| Chipbreaker Geometry ..HH, ..HT, HP | Chipbreaker Geometry ..HH-R/L |
- Suitable for light to moderate interruption of cuts.
- Suitable for smooth cuts.
- Use when chip control is a concern.
- Use when chip control is a concern.
- Superior surface fi nish and closer tolerance on workpiece.
- Superior surface fi nish and closer tolerance on workpiece.
