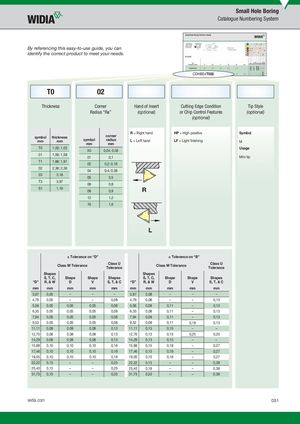

Общий каталог Widia 2017 - страница 401

Предыдущая страница Следующая страница

Навигация

By referencing this easy-to-use guide, you can

identify the correct product to meet your needs.

CDHBS4T002

T0 02

ThicknessCornerHand of InsertCutting Edge ConditionTip Style
Radius “R¡”(optional)or Chip Control Features(optional)

(optional)

symbol thickness mm mm

T01,00; 1,02
011,59; 1,58
T11,98; 1,91
022,38; 2,36
033,18
T33,97
S11,19
HP = High positive R = Right hand Symbol
corner
symbolradiusLF = Light fi nishing L = Left hand
M
mmmm
Usage
X00,04; 0,05
010,1Mini tip
020,2; 0,18
040,4; 0,38
050,5
080,8
090,9
121,2
161,6

± Tolerance on “D” ± Tolerance on “B” Class U Class U Class M Tolerance Class M Tolerance Tolerance Tolerance Shapes Shapes

S, T, C, Shape Shape Shapes S, T, C, Shape Shape Shapes
“D”R, & WDVS, T, & C“D”R, & WDVS, T, & C
mmmmmmmmmmmmmmmmmmmm
3,970,05–––3,970,08–––
4,760,05––0,084,760,08––0,13
5,560,050,050,050,085,560,080,11–0,13
6,350,050,050,050,086,350,080,11–0,13
7,940,050,050,050,087,940,080,11–0,13
9,520,050,050,050,08 9,520,08 0,110,180,13
11,110,080,080,080,1311,110,130,15––
12,700,080,080,080,1312,700,130,150,250,20
14,290,080,080,080,1314,290,130,15––
15,880,100,100,100,1815,880,150,18–0,27
17,460,100,100,100,1817,460,150,18–0,27
19,050,100,100,100,1819,050,150,18–0,27
22,220,13––0,2522,220,15––0,38
25,400,13––0,2525,400,18––0,38
31,750,15––0,2531,750,20––0,38
