See pages B99–B105 for inserts.

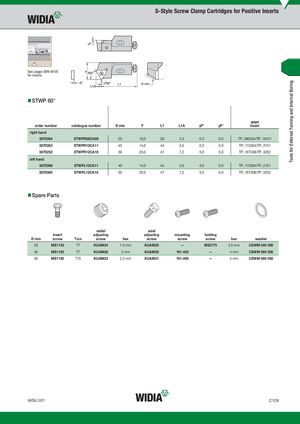

- STWP 60°
| order number | catalogue number | D min | F | L1 | L1A | �F° | �P° | gage insert |
| right hand 3870364 | STWPR08CA09 | 25 | 10,0 | 28 | 4,3 | 0.0 | 0.0 | TP..090204/TP..18151 |
| 3870363 | STWPR10CA11 | 40 | 14,0 | 44 | 5,0 | 0.0 | 0.0 | TP..110204/TP..2151 |
| 3870252 | STWPR12CA16 | 50 | 20,0 | 47 | 7,2 | 0.0 | 0.0 | TP..16T308/TP..3252 |
| left hand | ||||||||
| 3870366 | STWPL10CA11 | 40 | 14,0 | 44 | 5,0 | 0.0 | 0.0 | TP..110204/TP..2151 |
| 3870365 | STWPL12CA16 | 50 | 20,0 | 47 | 7,2 | 0.0 | 0.0 | TP..16T308/TP..3252 |
- Spare Parts
radial axial
insert adjusting adjusting mounting holding
| D min | insert screw | Torx | radial adjusting screw | hex | axial adjusting screw | mounting screw | holding screw | hex | washer |
| 25 | MS1152 | T7 | KUAM34 | 1.5 mm | KUAM20 | — | MS2175 | 2.5 mm | CSWM 040 050 |
| 40 | MS1153 | T7 | KUAM28 | 2 mm | KUAM30 | 191.405 | — | 4 mm | CSWM 060 050 |
| 50 | MS1155 | T15 | KUAM23 | 2.5 mm | KUAM31 | 191.406 | — | 4 mm | CSWM 060 050 |
