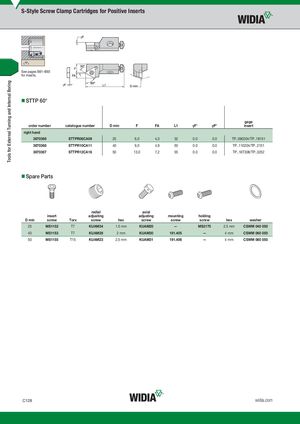

Общий каталог Widia 2017 - страница 368
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
See pages B81–B93 for inserts.
- STTP 60°
gage
order number catalogue number D min F FA L1 aF° aP° insert
right hand
| 3870369 | STTPR08CA09 | 25 | 6,0 | 4,3 | 32 | 0.0 | 0.0 | TP..090204/TP..18151 |
| 3870368 | STTPR10CA11 | 40 | 9,0 | 4,9 | 50 | 0.0 | 0.0 | TP..110204/TP..2151 |
| 3870367 | STTPR12CA16 | 50 | 13,0 | 7,2 | 55 | 0.0 | 0.0 | TP..16T308/TP..3252 |
- Spare Parts
radial axial
| insert | adjusting | adjusting | mounting | holding | ||||||||
| D min | screw | Torx | screw | hex | screw | screw | screw | hex | washer | |||
| 25 | MS1152 | T7 | KUAM34 | 1.5 mm | KUAM20 | — | MS2175 | 2.5 mm | CSWM 040 050 | |||
| 40 | MS1153 | T7 | KUAM28 | 2 mm | KUAM30 | 191.405 | — | 4 mm | CSWM 060 050 | |||
| 50 | MS1155 | T15 | KUAM23 | 2.5 mm | KUAM31 | 191.406 | — | 4 mm | CSWM 060 050 |
