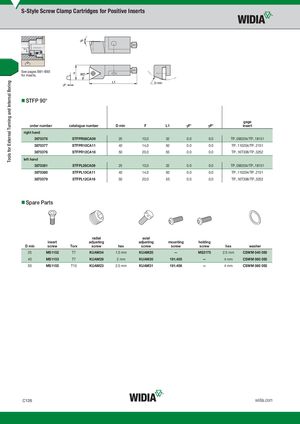

See pages B81–B93 for inserts.
- STFP 90°
gage
order number catalogue number D min F L1 aF° aP° insert
right hand
| 3870378 | STFPR08CA09 | 25 | 10,0 | 32 | 0.0 | 0.0 | TP..090204/TP..18151 |
| 3870377 | STFPR10CA11 | 40 | 14,0 | 50 | 0.0 | 0.0 | TP..110204/TP..2151 |
| 3870376 | STFPR12CA16 | 50 | 20,0 | 55 | 0.0 | 0.0 | TP..16T308/TP..3252 |
left hand
| 3870381 | STFPL08CA09 | 25 | 10,0 | 32 | 0.0 | 0.0 | TP..090204/TP..18151 |
| 3870380 | STFPL10CA11 | 40 | 14,0 | 50 | 0.0 | 0.0 | TP..110204/TP..2151 |
| 3870379 | STFPL12CA16 | 50 | 20,0 | 55 | 0.0 | 0.0 | TP..16T308/TP..3252 |
- Spare Parts
radial axial
| insert | adjusting | adjusting | mounting | holding | ||||||||
| D min | screw | Torx | screw | hex | screw | screw | screw | hex | washer | |||
| 25 | MS1152 | T7 | KUAM34 | 1.5 mm | KUAM20 | — | MS2175 | 2.5 mm | CSWM 040 050 | |||
| 40 | MS1153 | T7 | KUAM28 | 2 mm | KUAM30 | 191.405 | — | 4 mm | CSWM 060 050 | |||
| 50 | MS1155 | T15 | KUAM23 | 2.5 mm | KUAM31 | 191.406 | — | 4 mm | CSWM 060 050 |
