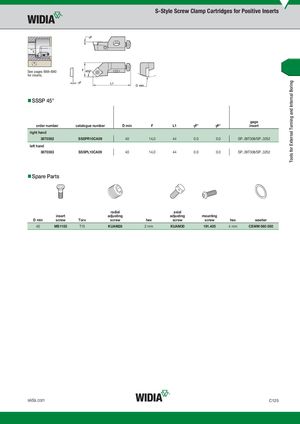

See pages B68–B80 for inserts.
- SSSP 45°
gage
| order number | catalogue number | D min | F | L1 | aF° | aP° | insert | |||
| right hand | ||||||||||
| 3870382 | SSSPR10CA09 | 40 | 14,0 | 44 | 0.0 | 0.0 | SP..09T308/SP..3252 | |||
| left hand | ||||||||||
| 3870383 | SSSPL10CA09 | 40 | 14,0 | 44 | 0.0 | 0.0 | SP..09T308/SP..3252 |
- Spare Parts
radial axial
| insert | adjusting | adjusting | mounting | ||||||
| D min | screw | Torx | screw | hex | screw | screw | hex | washer | |
| 40 | MS1155 | T15 | KUAM28 | 2 mm | KUAM30 | 191.405 | 4 mm | CSWM 060 050 |
