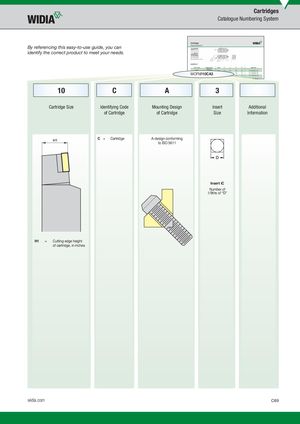

By referencing this easy-to-use guide, you can identify the correct product to meet your needs.
MCFNR10CA3
10 C A 3
| Cartridge Size | Identifying Code | Mounting Design | Insert | Additional | |
| of Cartridge | of Cartridge | Size | Information |
C = Cartridge A-design conforming
to ISO 5611
Insert iC Number of 1/8ths of “D”
H1 = Cutting edge height
of cartridge, in inches
