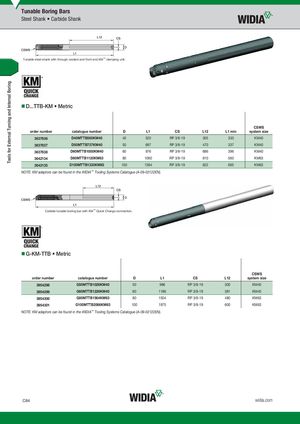

Tunable Boring Bars
Steel Shank • Carbide Shank
Tunable steel shank with through coolant and front end KM™ clamping unit.
- D...TTB-KM • Metric
| order number | catalogue number | D | L1 | CS | L12 | L1 min | CSWS system size |
| 3637636 | D40MTTB560KM40 | 40 | 520 | RP 3/8-19 | 305 | 330 | KM40 |
| 3637637 | D50MTTB737KM40 | 50 | 697 | RP 3/8-19 | 470 | 337 | KM40 |
| 3637638 | D60MTTB1000KM40 | 60 | 976 | RP 3/8-19 | 686 | 396 | KM40 |
| 3642134 | D80MTTB1120KM63 | 80 | 1060 | RP 3/8-19 | 610 | 560 | KM63 |
| 3642135 | D100MTTB1330KM63 | 100 | 1384 | RP 3/8-19 | 622 | 695 | KM63 |
NOTE: KM adaptors can be found in the WIDIA™ Tooling Systems Catalogue (A-09-02122EN).
Carbide tunable boring bar with KM ™ Quick Change connection.
- G-KM-TTB • Metric
CSWS
order number catalogue number D L1 CS L12 system size
| order number | catalogue number | D | L1 | CS | L12 | CSWS system size |
| 3954298 | G50MTTB1026KM40 | 50 | 986 | RP 3/8-19 | 300 | KM40 |
| 3954299 | G60MTTB1226KM40 | 60 | 1186 | RP 3/8-19 | 381 | KM40 |
| 3954300 | G80MTTB1564KM63 | 80 | 1504 | RP 3/8-19 | 480 | KM63 |
| 3954301 | G100MTTB2066KM63 | 100 | 1975 | RP 3/8-19 | 600 | KM63 |
