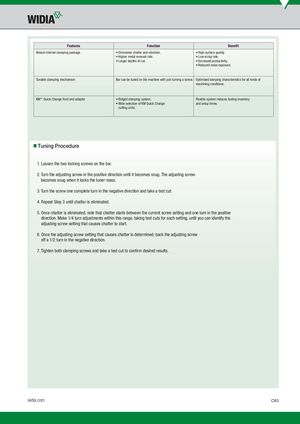

| Features | Function | Benefi t |
| Robust internal clamping package | • Eliminates chatter and vibration. • Higher metal removal rate. • Larger depths of cut. | • High surface quality. • Low scrap rate. • Increased productivity. • Reduced noise exposure. |
| Tunable clamping mechanism | Bar can be tuned on the machine with just turning a screw. | Optimised damping characteristics for all kinds of machining conditions. |
| KM™Quick Change front end adaptor | • Ridged clamping system. • Wide selection of KM Quick Change cutting units. | Flexible system reduces tooling inventory and setup times. |
cutting units.
Tuning Procedure
1. Loosen the two locking screws on the bar.
2. Turn the adjusting screw in the positive direction until it becomes snug. The adjusting screw
becomes snug when it locks the tuner mass. 3. Turn the screw one complete turn in the negative direction and take a test cut. 4. Repeat Step 3 until chatter is eliminated.
5. Once chatter is eliminated, note that chatter starts between the current screw setting and one turn in the positive
direction. Make 1/4 turn adjustments within this range, taking test cuts for each setting, until you can identify the
adjusting screw setting that causes chatter to start.
6. Once the adjusting screw setting that causes chatter is determined, back the adjusting screw
off a 1/2 turn in the negative direction. 7. Tighten both clamping screws and take a test cut to confi rm desired results.
