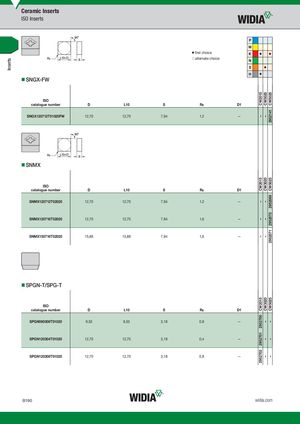

Общий каталог Widia 2017 - страница 210
Навигация
Каталог Widia токарный инструмент 2017
Каталог Widia трохоидальное фрезерование
Каталог Widia техническое руководство по разверткам
Каталог Widia фрезы со сменными пластинами 2016
Каталог Widia достижения 2020- Table of Contents
- Turning
- Turning • ISO Inserts
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for External Turning and Internal Boring
- Turning • Tools for Small Hole Boring
- com E1Turning • Grooving and Cut-Off
- Turning • Threading
- Indexable Milling
- Indexable Milling • Face Mills
- Indexable Milling • Chamfer Mills
- Indexable Milling • 90° Shoulder Mills
- Indexable Milling • Helical Mills
- Indexable Milling • Slotting Mills
- Indexable Milling • Copy Mills
- Solid End Milling
- Solid End Milling • High-Performance Solid Carbide End Mills
- Solid End Milling • General Purpose Solid Carbide End Mills
- Solid End Milling • High-Performance High-Speed Steel (HSS-E/PM)
- Solid End Milling • Burs
- Holemaking
- Holemaking • High-Performance Solid Carbide Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Modular Drills
- Holemaking • Indexable Drills
- Holemaking • Hole Finishing
- Tapping
- Tapping Portfolio
- Index by Order Number
- Index by Catalogue Number
- Global Contacts
- Informational Icons Guide
- Material Overview • DIN
first choice alternate choice
- SNGX-FW
P M K N S H
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| SNGX120712T01020FW | 12,70 | 12,70 | 7,94 | 1,2 | — |
- SNMX
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| SNMX120712T02020 | 12,70 | 12,70 | 7,94 | 1,2 | — |
SNMX120716T02020 12,70 12,70 7,94 1,6 —
SNMX150716T02020 15,88 15,88 7,94 1,6 —
- SPGN-T/SPG-T
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| SPGN090308T01020 | 9,53 | 9,53 | 3,18 | 0,8 | — |
SPGN120304T01020 12,70 12,70 3,18 0,4 —
SPGN120308T01020 12,70 12,70 3,18 0,8 —
