first choice alternate choice

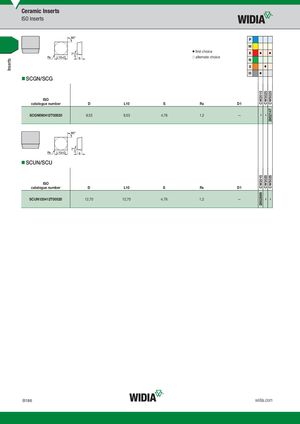

- SCGN/SCG
P M K N S H
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| SCGN090412T00520 | 9,53 | 9,53 | 4,76 | 1,2 | — |
- SCUN/SCU
ISO
| catalogue number | D | L10 | S | R¡ | D1 |
| SCUN120412T00520 | 12,70 | 12,70 | 4,76 | 1,2 | — |
