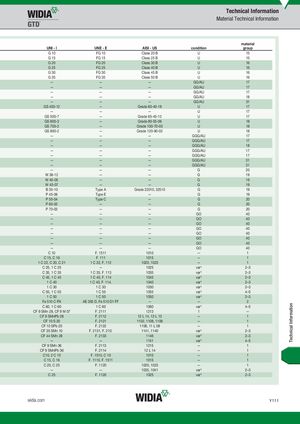

- Material Overview • DIN
| UNI - l | UNE - E | AISI - US | condition | material group |
| G 10 | FG 10 | Class 20 B | U | 15 |
| G 15 | FG 15 | Class 25 B | U | 15 |
| G 20 G 25 | FG 20 FG 25 | Class 30 B Class 40 B | U U | 16 16 |
| G 30 G 35 | FG 30 FG 35 | Class 45 B Class 50 B | U U | 16 16 |
| — — | — — | — — | GG/AU GG/AU | 17 17 |
| — | — | — | GG/AU | 17 |
| — | — | — | GG/AU | 18 |
| — GS 400-12 | — — | — Grade 60-40-18 | GG/AU U | 31 17 |
| — GS 500-7 | — — | — Grade 65-45-12 | U U | 17 17 |
| GS 600-3 GS 700-2 | — — | Grade 80-55-06 Grade 100-70-03 | U U | 18 18 |
| GS 800-2 — | — — | Grade 120-90-02 — | U GGG/AU | 18 17 |
| — — | — — | — — | GGG/AU GGG/AU | 17 18 |
| — | — | — | GGG/AU | 17 |
| — | — | — | GGG/AU | 17 |
| — — | — — | — — | GGG/AU GGG/AU | 31 31 |
| — | — | — | G | 20 |
| W 38-12 | — | — | G | 19 |
| W 40-05 W 45-07 | — — | — — | G G | 19 19 |
| B 35-10 | Type A | Grade 22010, 32510 | G | 19 |
| P 45-06 | Type E | — | G | 19 |
| P 55-04 P 65-02 | Type C — | — — | G G | 20 20 |
| P 70-02 | — | — | G | 20 |
| — | — | — | GO | 40 |
| — | — | — | GO | 40 |
| — | — | — | GO | 40 |
| — | — | — | GO | 40 |
| — | — | — | GO | 40 |
| — | — | — | GO | 40 |
| — | — | — | GO | 40 |
| — | — | — | GO | 40 |
| C 10 | F. 1511 | 1010 | — | 1 |
| C 15, C 16 1 C 22, C 20, C 21 | F. 111 1 C 22, F. 112 | 1015 1020, 1023 | — — | 1 1 |
| C 25 1 C 25 | — | 1025 | var1 | 2–3 |
| , C 35, 1 C 35 | 1 C 35, F. 113 | 1035 | var1 | 2–3 |
| C 45, 1 C 45 | 1 C 45, F. 114 | 1045 | var1 | 2–3 |
| 1 C 40 1 C 30 | 1 C 40, F. 114. 1 C 30 | 1040 1030 | var1 var1 | 2–3 2–3 |
| C 55, 1 C 55 | 1 C 55 | 1055 | var1 | 4–5 |
| 1 C 50 Fe 510 C FN | 1 C 50 AE 355 D, Fe 510 D1 FF | 1050 — | var1 — | 2–3 2 |
| C 60, 1 C 60 | 1 C 60 | 1060 | var1 | 4–5 |
| CF 9 SMn 28, CF 9 M 07 | F. 2111 | 1213 | 1 | — |
| CF 9 SMnPb 28 CF 10 S 20 | F. 2112 F 2121 | 12 L 14, 12 L 13 1102 1108 1109 | — — | 1 1 |
| CF 10 SPb 20 | . F. 2122 | , , 1108, 11 L 08 | — | 1 |
| CF 35 SMn 10 | F. 2131, F. 210. | 1141, 1140 | var1 | 2–3 |
| CF 44 SMn 28 — | F. 2133 — | 1146 1151 | var1 var1 | 2–3 4–5 |
| CF 9 SMn 36 CF 9 SMnPb 36 | F. 2113 F. 2114 | 1215 12 L 14 | — — | 1 1 |
| C10 2 C 10 | F 1510 C 10 | 1010 | — | 1 |
| , C 15, C 16 | . , F. 1110, F. 1511 | 1015 | — | 1 |
| C 20, C 25 | F. 1120 | 1020, 1023 | — 1 | 1 |
| — C 25 | — F. 1120 | 1035, 1041 1025 | var var1 | 2–3 2–3 |
