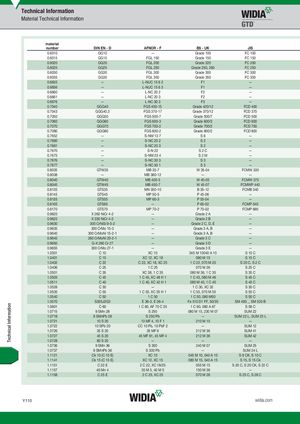

- Material Overview • DIN
| material number | DIN EN - D | AFNOR - F | BS - UK | JIS |
| 0.6010 0.6015 | GG10 GG15 | — FGL 150 | Grade 100 Grade 150 | FC 100 FC 150 |
| 0.6020 | GG20 | FGL 200 | Grade 220 | FC 200 |
| 0.6025 | GG25 | FGL 250 | Grade 250, 260 | FC 250 |
| 0.6030 | GG30 | FGL 300 | Grade 300 | FC 300 |
| 0.6035 | GG35 | FGL 350 | Grade 350 | FC 350 |
| 0.6655 0.6656 | — — | L-NUC 15 6 2 L-NUC 15 6 3 | F1 F1 | — — |
| 0.6660 06661 | — | L-NC 20 2 LNC 20 3 | F2 F2 | — |
| . 0.6676 0.7040 | — — GGG40 | - L-NC 30 3 FGS 400-15 | F3 Grade 420/12 | — — FCD 400 |
| 0.7043 | GGG40.3 | FGS 370-17 | Grade 370/12 | FCD 370 |
| 0.7050 | GGG50 | FGS 500-7 | Grade 500/7 | FCD 500 |
| 0.7060 07070 | GGG60 GGG70 | FGS 600-3 FGS 700-2 | Grade 600/3 Grade 700/2 | FCD 600 FCD 700 |
| . 0.7080 | GGG80 | FGS 800-2 | Grade 800/2 | FCD 800 |
| 0.7652 | — | S-NM 13 7 | S 6 | — |
| 0.7660 | — | S-NC 20 2 | S 2 | — |
| 0.7661 | — | S-NC 20 3 | S 2 | — |
| 0.7670 | — | S-N 22 | S 2 C | — |
| 0.7673 | — | S-NM 23 4 | S 2 M | — |
| 0.7676 0.7677 | — — | S-NC 30 3 S-NC 30 1 | S 3 S 3 | — — |
| 0.8035 | GTW35 | MB 35-7 | W 35-04 | FCMW 330 |
| 0.8038 | — | MB 380-12 | — | — |
| 0.8040 | GTW40 | MB 400-5 | W 40-05 | FCMW 370 |
| 0.8045 | GTW45 | MB 450-7 | W 45-07 | FCMWP 440 |
| 0.8135 | GTS35 | MN 350-10 | B 35-12 | FCMB 340 |
| 0.8145 | GTS45 | MP 50-5 | P 45-06 | — |
| 0.8155 08165 | GTS55 GTS65 | MP 60-3 — | P 55-04 P 65-02 | — FCMP 540 |
| . 0.8170 09620 | GTS70 X 260 NiCr 4-2 | MP 70-2 — | P 70-02 Grade 2 A | FCMP 690 — |
| . 0.9625 | X 330 NiCr 4-2 | — | Grade 2 B | — |
| 0.9630 | 300 CrNiSi 9-5-2 | — | Grade 2 C D E | — |
| 0.9635 | 300 CrMo 15-3 | — | , , Grade 3 A, B | — |
| 0.9640 | 300 CrMoNi 15-2-1 | — | Grade 3 A, B | — |
| 0.9645 0.9650 | 260 CrMoNi 20-2-1 G-X 260 Cr 27 | — — | Grade 3 C Grade 3 D | — — |
| 0.9655 | 300 CrMo 27-1 | — | Grade 3 E | — |
| 1.0301 | C 10 | XC 10 | 045 M 10040 A 10 | S 10 C |
| 1.0401 | C 15 | XC 12, XC 18 | 080 M 15 | S 15 C |
| 1.0402 | C 22 | C 22, XC 18, XC 25 | 1 C 22, 070 M 20 | S 20 C, S 2 C |
| 1.0406 | C 25 | 1 C 25 | 070 M 26 | S 25 C |
| 1.0501 | C 35 | XC 38, 1 C 35 | 080 M 36, 1 C 35 | S 35 C |
| 1.0503 1.0511 | C 45 C 40 | 1 C 45, XC 48 H 1 1 C 40, XC 42 H 1 | 1 C 45, 080 M 46 080 M 40, 1 C 40 | S 45 C S 40 C |
| 1.0528 | C 30 | — | 1 C 30, XC 32 | S 30 C |
| 1.0535 | C 55 | 1 C 55, XC 55 H 1 | 1 C 55, 070 M 55 | S 55 C |
| 1.0540 | C 50 | 1 C 50 | 1 C 50, 080 M50 | S 50 C |
| 1.0570 | S355J2G3 | E 36-3, E 36-4 | Fe 510 D1 FF, 50/35 | SM 490 , SM 520 B |
| 1.0601 1.0715 | C 60 9 SMn 28 | 1 C 60, AF 70 C 55 S 250 | 1 C 60, 080 A 67 080 M 15 230 M 07 | S 58 C SUM 22 |
| 1.0718 10721 | 9 SMnPb 28 10 S 20 | S 250 Pb 13 MF 4 10 F 1 | , — 210 M 15 | SUM 22 L, SUM 23 L — |
| . 10722 | 10 SPb 20 | , CC 10 Pb 10 PbF 2 | SUM 12 | |
| . 1.0726 | 35 S 20 | , 35 MF 6 | — 212 M 36 | SUM 41 |
| 1.0727 10728 | 45 S 20 60 S 20 | 45 MF 61, 45 MF 4 — | 212 M 36 — | SUM 42 — |
| . 1.0736 | 9 SMn 36 | S 300 | 240 M 07 | SUM 25 |
| 1.0737 | 9 SMnPb 36 | S 300 Pb | — | SUM 24 L |
| 1.1121 | Ck 10 (C 10 E) | XC 10 | 045 M 10 040 A 10 | S 9 CK S 10 C |
| 1.1141 | Ck 15 (C 15 E) | XC 12, XC 15 | , 080 M 15, 040 A 15 | , S 15, S 15 Ck |
| 1.1151 | C 22 E | 2 C 22, XC 18/25 | 055 M 15 | S 20 C, S 20 CK, S 22 C |
| 1.1157 1.1158 | 40 Mn 4 C 25 E | 35 M 5, 40 M 5 2 C 25, XC 25 | 150 M 36 070 M 26 | — S 25 C, S 28 C |
