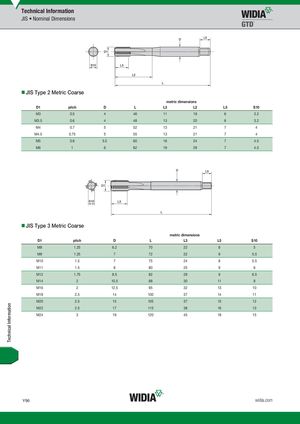

JIS • Nominal Dimensions
- JIS Type 2 Metric Coarse
| D1 | pitch | D | L | L3 metric d | L2 imensions | L5 | S10 |
| M3 | 0.5 | 4 | 46 | 11 | 19 | 6 | 3.2 |
| M3.5 | 0.6 | 4 | 48 | 13 | 20 | 6 | 3.2 |
| M4 | 0.7 | 5 | 52 | 13 | 21 | 7 | 4 |
| M4.5 | 0.75 | 5 | 55 | 13 | 21 | 7 | 4 |
| M5 | 0.8 | 5.5 | 60 | 16 | 24 | 7 | 4.5 |
| M6 | 1 | 6 | 62 | 19 | 29 | 7 | 4.5 |
- JIS Type 3 Metric Coarse
metric dimensions
D1 pitch D L L3 L5 S10
| metric dimensions | ||||||
| D1 | pitch | D | L | L3 | L5 | S10 |
| M8 | 1.25 | 6.2 | 70 | 22 | 8 | 5 |
| M9 | 1.25 | 7 | 72 | 22 | 8 | 5.5 |
| M10 | 1.5 | 7 | 75 | 24 | 8 | 5.5 |
| M11 | 1.5 | 8 | 80 | 25 | 9 | 6 |
| M12 | 1.75 | 8.5 | 82 | 29 | 9 | 6.5 |
| M14 | 2 | 10.5 | 88 | 30 | 11 | 8 |
| M16 | 2 | 12.5 | 95 | 32 | 13 | 10 |
| M18 | 2.5 | 14 | 100 | 37 | 14 | 11 |
| M20 | 2.5 | 15 | 105 | 37 | 15 | 12 |
| M22 | 2.5 | 17 | 115 | 38 | 16 | 13 |
| M24 | 3 | 19 | 120 | 45 | 18 | 15 |
