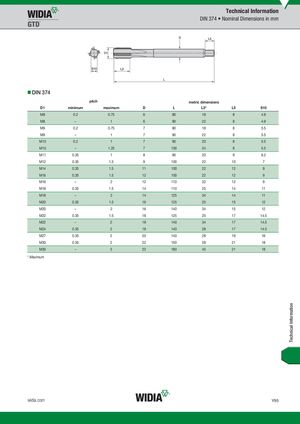

DIN 374 • Nominal Dimensions in mm
DIN 374
| pit | ch | m | etric dimensions | ||||
| D1 | minimum | maximum | D | L | L3 | L5 | S10 |
| M8 | 0.2 | 0.75 | 6 | 80 | 18 | 8 | 4.9 |
| M8 | – | 1 | 6 | 90 | 22 | 8 | 4.9 |
| M9 | 0.2 | 0.75 | 7 | 80 | 18 | 8 | 5.5 |
| M9 | – | 1 | 7 | 90 | 22 | 8 | 5.5 |
| M10 | 0.2 | 1 | 7 | 90 | 20 | 8 | 5.5 |
| M10 | – | 1.25 | 7 | 100 | 24 | 8 | 5.5 |
| M11 | 0.35 | 1 | 8 | 90 | 20 | 9 | 6.2 |
| M12 | 0.35 | 1.5 | 9 | 100 | 22 | 10 | 7 |
| M14 | 0.35 | 1.5 | 11 | 100 | 22 | 12 | 9 |
| M16 | 0.35 | 1.5 | 12 | 100 | 22 | 12 | 9 |
| M16 | – | 2 | 12 | 110 | 32 | 12 | 9 |
| M18 | 0.35 | 1.5 | 14 | 110 | 25 | 14 | 11 |
| M18 | – | 2 | 14 | 125 | 34 | 14 | 11 |
| M20 | 0.35 | 1.5 | 16 | 125 | 25 | 15 | 12 |
| M20 | – | 2 | 16 | 140 | 34 | 15 | 12 |
| M22 | 0.35 | 1.5 | 18 | 125 | 25 | 17 | 14.5 |
| M22 | – | 2 | 18 | 140 | 34 | 17 | 14.5 |
| M24 | 0.35 | 2 | 18 | 140 | 28 | 17 | 14.5 |
| M27 | 0.35 | 2 | 20 | 140 | 28 | 19 | 16 |
| M30 | 0.35 | 2 | 22 | 150 | 28 | 21 | 18 |
| M30 | – | 3 | 22 | 180 | 45 | 21 | 18 |
