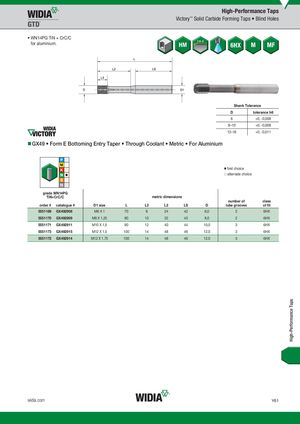

Victory ™ Solid Carbide Forming Taps Blind Holes
- WN14PG TiN + CrC/C for aluminium.
Shank Tolerance
| D | tolerance h6 |
| 6 | +0, -0,008 |
| 8–10 | +0, -0,009 |
| 12–16 | +0, -0,011 |
GX49 Form E Bottoming Entry Taper Through Coolant Metric For Aluminium
first choice alternate choice
grade WN14PGWN14PG
| WN14PG grade WN14PG TiN+CrC/C order # catalogue # | D1 size | L | L3 me | L2 tric dimensi | LS ons | D | number of lubegrooves | class of fit |
| 5551169 GX492908 | M6 X 1 | 70 | 8 | 24 | 42 | 6,0 | 2 | 6HX |
| 5551170 GX492909 | M8 X 1,25 | 80 | 10 | 32 | 43 | 8,0 | 2 | 6HX |
| 5551171 GX492911 | M10 X 1,5 | 90 | 12 | 40 | 44 | 10,0 | 3 | 6HX |
| 5551173 GX492915 | M12 X 1,5 | 100 | 14 | 48 | 46 | 12,0 | 3 | 6HX |
| 5551172 GX492914 | M12 X 1,75 | 100 | 14 | 48 | 46 | 12,0 | 3 | 6HX |
