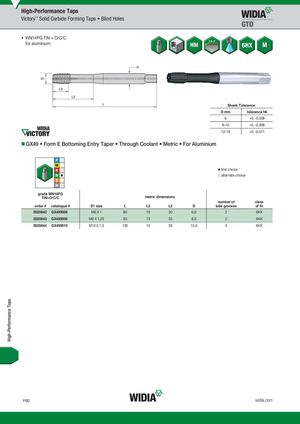

Victory™ Solid Carbide Forming Taps Blind Holes
- WN14PG TiN + CrC/C for aluminium.
Shank Tolerance
| D mm | tolerance h6 |
| 6 | +0, -0,008 |
| 8–10 | +0, -0,009 |
| 12–16 | +0, -0,011 |
GX49 Form E Bottoming Entry Taper Through Coolant Metric For Aluminium
first choice alternate choice
grade WN14PGWN14PG TiN+CrC/C metric dimensions number of class
| order # catalogue # | D1 size | L | L3 | L2 | D | lube grooves | of fit | |
| 5520842 GX495006 | M6 X 1 | 80 | 10 | 30 | 6,0 | 2 | 6HX | |
| 5520843 GX495008 | M8 X 1,25 | 90 | 13 | 35 | 8,0 | 2 | 6HX | |
| 5520844 GX495010 | M10 X 1,5 | 100 | 15 | 39 | 10,0 | 3 | 6HX |
