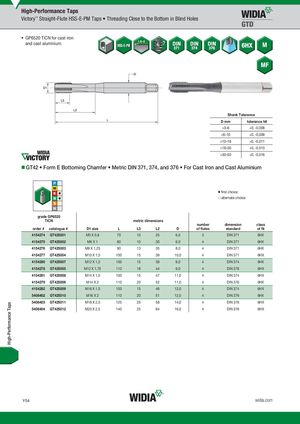

Общий каталог Widia 2017 - страница 1758

Предыдущая страница Следующая страница

Навигация

Victory™ Straight-Flute HSS-E-PM Taps Threading Close to the Bottom in Blind Holes

  • GP6520 TiCN for cast iron and cast aluminium.
Shank Tolerance
D mm tolerance h6
>3–6 +0, -0,008
>6–10 +0, -0,009
>10–18 +0, -0,011
>18–30 +0, -0,013
>30–50 +0, -0,016

„ GT42 Form E Bottoming Chamfer Metric DIN 371, 374, and 376 For Cast Iron and Cast Aluminium

first choice alternate choice

grade GP6520GP6520 TiCN metric dimensions

GP6520 grade GP6520 TiCN order # catalogue #D1 sizeLL3 metric diL2 mensionsDnumber of flutesdimension standardclass of fit
4154274 GT425001M5 X 0,87010256,03DIN 3716HX
4154275 GT425002M6 X 18010306,04DIN 3716HX
4154276 GT425003M8 X 1,259013358,04DIN 3716HX
4154277 GT425004M10 X 1,5100153910,04DIN 3716HX
4154280 GT425007M12 X 1,510015399,04DIN 3746HX
4154278 GT425005M12 X 1,7511018449,04DIN 3766HX
4154281 GT425008M14 X 1,5100154711,04DIN 3746HX
4154279 GT425006M14 X 2110205211,04DIN 3766HX
4154282 GT425009M16 X 1,5100154612,04DIN 3746HX
5408402 GT425010M16 X 2110205112,04DIN 3766HX
5408403 GT425011M18 X 2,5125255814,04DIN 3766HX
5408404 GT425012M20 X 2,5140256416,04DIN 3766HX
