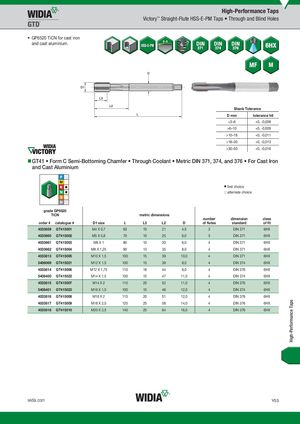

Victory™ Straight-Flute HSS-E-PM Taps Through and Blind Holes

  • GP6520 TiCN for cast iron and cast aluminium.
Shank Tolerance
D mm tolerance h6
>3–6 +0, -0,008
>6–10 +0, -0,009
>10–18 +0, -0,011
>18–30 +0, -0,013
>30–50 +0, -0,016

„ GT41 Form C Semi-Bottoming Chamfer Through Coolant Metric DIN 371, 374, and 376 For Cast Iron

and Cast Aluminium

first choice alternate choice

grade GP6520GP6520

GP6520 grade GP6520 TiCN order # catalogue #D1 sizeLL3 metric diL2 mensionsDnumber of flutesdimension standardclass of fit
4033659 GT415001M4 X 0,76310214,53DIN 3716HX
4033660 GT415002M5 X 0,87010256,03DIN 3716HX
4033661 GT415003M6 X 18010306,04DIN 3716HX
4033662 GT415004M8 X 1,259013358,04DIN 3716HX
4033813 GT415005M10 X 1,5100153910,04DIN 3716HX
5408069 GT415021M12 X 1,510015399,04DIN 3746HX
4033814 GT415006M12 X 1,7511018449,04DIN 3766HX
5408400 GT415022M14 X 1,5100154711,04DIN 3746HX
4033815 GT415007M14 X 2110205211,04DIN 3766HX
5408401 GT415023M16 X 1,5100154612,04DIN 3746HX
4033816 GT415008M16 X 2110205112,04DIN 3766HX
4033817 GT415009M18 X 2,5125255814,04DIN 3766HX
4033818 GT415010M20 X 2,5140256416,04DIN 3766HX
