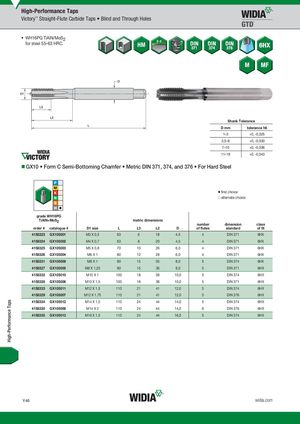

Victory™ Straight-Flute Carbide Taps Blind and Through Holes
- WH16PG TiAlN/MoS2 for steel 55–63 HRC.
| Shank Tolerance |
| D mm tolerance h6 |
| 1–3 +0, -0,025 |
| 3,5–6 +0, -0,030 |
| 7–10 +0, -0,036 |
| 11–18 +0, -0,043 |
GX10 Form C Semi-Bottoming Chamfer Metric DIN 371, 374, and 376 For Hard Steel
first choice alternate choice
grade WH16PGWH16PG
| WH16PG grade WH16PG TiAlN+MoS2 order # catalogue # | D1 size | L | L3 metric di | L2 mensions | D | number of flutes | dimension standard | class of fit |
| 4158323 GX105001 | M3 X 0,5 | 63 | 6 | 18 | 4,5 | 4 | DIN 371 | 6HX |
| 4158324 GX105002 | M4 X 0,7 | 63 | 8 | 20 | 4,5 | 4 | DIN 371 | 6HX |
| 4158325 GX105003 | M5 X 0,8 | 70 | 10 | 26 | 6,0 | 4 | DIN 371 | 6HX |
| 4158326 GX105004 | M6 X 1 | 80 | 12 | 28 | 6,0 | 4 | DIN 371 | 6HX |
| 4158331 GX105009 | M8 X 1 | 90 | 15 | 35 | 8,0 | 5 | DIN 374 | 6HX |
| 4158327 GX105005 | M8 X 1,25 | 90 | 15 | 35 | 8,0 | 5 | DIN 371 | 6HX |
| 4158332 GX105010 | M10 X 1 | 100 | 18 | 38 | 10,0 | 5 | DIN 374 | 6HX |
| 4158328 GX105006 | M10 X 1,5 | 100 | 18 | 38 | 10,0 | 5 | DIN 371 | 6HX |
| 4158333 GX105011 | M12 X 1,5 | 110 | 21 | 41 | 12,0 | 5 | DIN 374 | 6HX |
| 4158329 GX105007 | M12 X 1,75 | 110 | 21 | 41 | 12,0 | 5 | DIN 376 | 6HX |
| 4158334 GX105012 | M14 X 1,5 | 110 | 24 | 44 | 14,0 | 5 | DIN 374 | 6HX |
| 4158330 GX105008 | M14 X 2 | 110 | 24 | 44 | 14,0 | 6 | DIN 376 | 6HX |
| 4158335 GX105013 | M16 X 1,5 | 110 | 24 | 44 | 16,0 | 5 | DIN 374 | 6HX |
