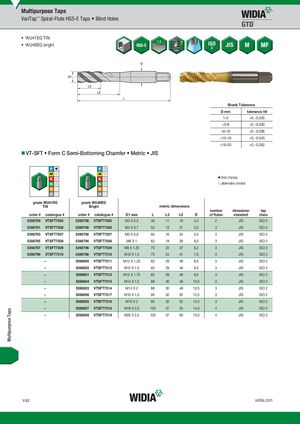

Общий каталог Widia 2017 - страница 1746

Предыдущая страница Следующая страница

Навигация

  • WU41EG TiN

3–5

  • WU40EG bright
Shank Tolerance
D mm tolerance h9
1–3 +0, -0,025
>3–6 +0, -0,030
>6–10 +0, -0,036
>10–18 +0, -0,043
>18–30 +0, -0,052

„ VT-SFT Form C Semi-Bottoming Chamfer Metric JIS

first choice alternate choice

grade WU41EGWU41EG grade WU40EGWU40EG

WU41EG grade WU41EG TiNWU40EG grade WU40EG Brightmetric dimensions
order # catalogue #order # catalogue #D1 sizeLL3L2Dnumber of flutesdimension standardtap class
5398709 VTSFT75055398708 VTSFT7505M3 X 0,54611194,02JISISO 2
5398791 VTSFT75065398790 VTSFT7506M4 X 0,75213215,03JISISO 2
5398793 VTSFT75075398792 VTSFT7507M5 X 0,86016245,53JISISO 2
5398795 VTSFT75085398794 VTSFT7508M6 X 16219296,03JISISO 2
5398797 VTSFT75095398796 VTSFT7509M8 X 1,257022376,23JISISO 2
5398799 VTSFT75105398798 VTSFT7510M10 X 1,57524417,03JISISO 2
–5398800 VTSFT7511M12 X 1,258229488,53JISISO 2
–5398802 VTSFT7513M12 X 1,58229488,53JISISO 2
–5398801 VTSFT7512M12 X 1,758229488,53JISISO 2
–5398804 VTSFT7515M14 X 1,588304810,53JISISO 2
–5398803 VTSFT7514M14 X 288304810,53JISISO 2
–5398806 VTSFT7517M16 X 1,595325212,53JISISO 2
–5398805 VTSFT7516M16 X 295325212,53JISISO 2
–5398807 VTSFT7518M18 X 2,5100375514,04JISISO 2
–5398808 VTSFT7519M20 X 2,5105376015,04JISISO 2
