- WP42EG TiCN
- WP49EG oxide
| Shank Tolerance |
| D mm tolerance h9 |
| 1–3 +0, -0,025 |
| >3–6 +0, -0,030 |
| >6–10 +0, -0,036 |
| >10–18 +0, -0,043 |
| >18–30 +0, -0,052 |

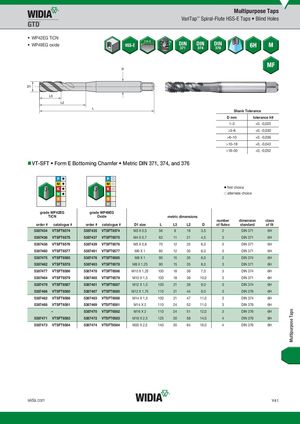

VT-SFT Form E Bottoming Chamfer Metric DIN 371, 374, and 376
first choice alternate choice
grade WP42EGWP42EG grade WP49EGWP49EG
TiCN Oxide metric dimensions
| WP42EG grade WP42EG TiCN | WP49EG grade WP49EG Oxide | metric di | mension | s | |||||
| order # catalogue # | order # catalogue # | D1 size | L | L3 | L2 | D | number of flutes | dimension standard | class of fit |
| 5387434 VTSFT6574 | 5387435 VTSFT6574 | M3 X 0,5 | 56 | 8 | 18 | 3,5 | 2 | DIN 371 | 6H |
| 5387436 VTSFT6575 | 5387437 VTSFT6575 | M4 X 0,7 | 63 | 11 | 21 | 4,5 | 3 | DIN 371 | 6H |
| 5387438 VTSFT6576 | 5387439 VTSFT6576 | M5 X 0,8 | 70 | 12 | 25 | 6,0 | 3 | DIN 371 | 6H |
| 5387460 VTSFT6577 | 5387461 VTSFT6577 | M6 X 1 | 80 | 12 | 30 | 6,0 | 3 | DIN 371 | 6H |
| 5387475 VTSFT6585 | 5387476 VTSFT6585 | M8 X 1 | 90 | 15 | 35 | 6,0 | 3 | DIN 374 | 6H |
| 5387462 VTSFT6578 | 5387463 VTSFT6578 | M8 X 1,25 | 90 | 15 | 35 | 8,0 | 3 | DIN 371 | 6H |
| 5387477 VTSFT6586 | 5387478 VTSFT6586 | M10 X 1,25 | 100 | 18 | 39 | 7,0 | 3 | DIN 374 | 6H |
| 5387464 VTSFT6579 | 5387465 VTSFT6579 | M10 X 1,5 | 100 | 18 | 39 | 10,0 | 3 | DIN 371 | 6H |
| 5387479 VTSFT6587 | 5387481 VTSFT6587 | M12 X 1,5 | 100 | 21 | 39 | 9,0 | 3 | DIN 374 | 6H |
| 5387466 VTSFT6580 | 5387467 VTSFT6580 | M12 X 1,75 | 110 | 21 | 44 | 9,0 | 3 | DIN 376 | 6H |
| 5387482 VTSFT6588 | 5387483 VTSFT6588 | M14 X 1,5 | 100 | 21 | 47 | 11,0 | 3 | DIN 374 | 6H |
| 5387468 VTSFT6581 | 5387469 VTSFT6581 | M14 X 2 | 110 | 24 | 52 | 11,0 | 3 | DIN 376 | 6H |
| – | 5387470 VTSFT6582 | M16 X 2 | 110 | 24 | 51 | 12,0 | 3 | DIN 376 | 6H |
| 5387471 VTSFT6583 | 5387472 VTSFT6583 | M18 X 2,5 | 125 | 30 | 58 | 14,0 | 4 | DIN 376 | 6H |
| 5387473 VTSFT6584 | 5387474 VTSFT6584 | M20 X 2,5 | 140 | 30 | 64 | 16,0 | 4 | DIN 376 | 6H |
