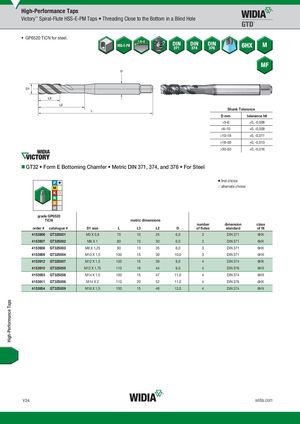

Victory™ Spiral-Flute HSS-E-PM Taps Threading Close to the Bottom in a Blind Hole

  • GP6520 TiCN for steel.
Shank Tolerance
D mmtolerance h6
>3–6+0, -0,008
>6–10+0, -0,009
>10–18+0, -0,011
>18–30+0, -0,013
>30–50+0, -0,016

„ GT32 Form E Bottoming Chamfer Metric DIN 371, 374, and 376 For Steel

first choice alternate choice

grade GP6520GP6520

GP6520 grade GP6520 TiCN order # catalogue #D1 sizeLL3 metric dimL2 ensionsDnumber of flutesdimension standardclass of fit
4153906 GT325001M5 X 0,87010256,03DIN 3716HX
4153907 GT325002M6 X 18010306,03DIN 3716HX
4153908 GT325003M8 X 1,259013358,03DIN 3716HX
4153909 GT325004M10 X 1,5100153910,03DIN 3716HX
4153912 GT325007M12 X 1,510015399,04DIN 3746HX
4153910 GT325005M12 X 1,7511018449,04DIN 3766HX
4153953 GT325008M14 X 1,5100154711,04DIN 3746HX
4153911 GT325006M14 X 2110205211,04DIN 3766HX
4153954 GT325009M16 X 1,5100154612,04DIN 3746HX
