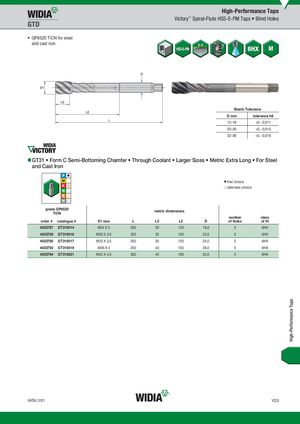

- GP6520 TiCN for steel and cast iron.
| Shank Tolerance |
| D mm tolerance h6 |
| 12–18 +0, -0,011 |
| 20–30 +0, -0,013 |
| 32–36 +0, -0,016 |
GT31 Form C Semi-Bottoming Chamfer Through Coolant Larger Sizes Metric Extra Long For Steel
and Cast Iron
first choice alternate choice
grade GP6520GP6520 metric dimensions
| GP6520 grade GP6520 TiCN order # catalogue # | D1 size | L | L3 metric d | L2 imensions | D | number of flutes | class of fit |
| 4033787 GT315014 | M24 X 3 | 200 | 30 | 120 | 18,0 | 5 | 6HX |
| 4033789 GT315016 | M30 X 3,5 | 250 | 35 | 150 | 22,0 | 5 | 6HX |
| 4033790 GT315017 | M33 X 3,5 | 250 | 35 | 150 | 25,0 | 5 | 6HX |
| 4033792 GT315019 | M36 X 4 | 250 | 40 | 150 | 28,0 | 5 | 6HX |
| 4033794 GT315021 | M42 X 4,5 | 300 | 45 | 180 | 32,0 | 5 | 6HX |
