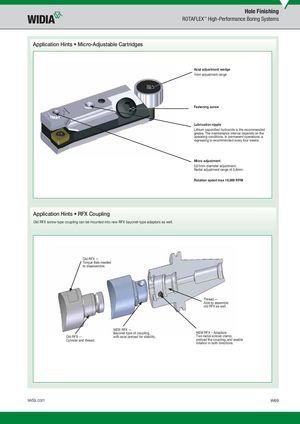

Application Hints • Micro-Adjustable Cartridges
Axial adjustment wedge 1mm adjustment range
Fastening screw
Lubrication nipple Lithium saponifi ed hydroxide is the recommended grease. The maintenance interval depends on the operating conditions. In permanent operations, a regreasing is recommended every four weeks.
Micro adjustment 0,01mm diameter adjustment. Radial adjustment range of 0,6mm.
Rotation speed max 10,000 RPM
Application Hints • RFX Coupling
Old RFX screw-type coupling can be mounted into new RFX bayonet-type adaptors as well.
Old RFX — Torque fl ats needed to disassemble.
Thread — Able to assemble old RFX as well.
NEW RFX — Bayonet type of coupling, NEW RFX – Adaptors
Old RFX — with axial preload for stability. Two radial screws clamp,
Cylinder and thread. preload the coupling, and enable rotation in both directions.
