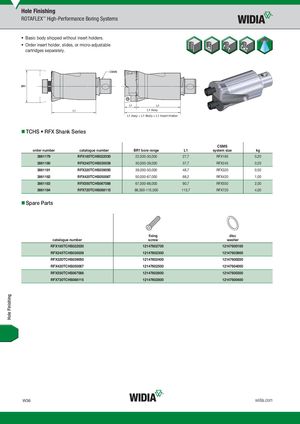

- Basic body shipped without insert holders.
- Order insert holder, slides, or micro-adjustable cartridges separately.
L1 Assy L1 Assy = L1 Body + L1 Insert Holder
- TCHS RFX Shank Series
| order number | catalogue number | BR1 bore range | L1 | CSMS system size | kg |
| 3861179 | RFX185TCHS022030 | 22,500-30,000 | 27,7 | RFX185 | 0,20 |
| 3861180 | RFX245TCHS030039 | 30,000-39,000 | 37,7 | RFX245 | 0,20 |
| 3861181 | RFX320TCHS039050 | 39,000-50,000 | 48,7 | RFX320 | 0,50 |
| 3861182 | RFX420TCHS050067 | 50,000-67,000 | 68,2 | RFX420 | 1,00 |
| 3861183 | RFX550TCHS067088 | 67,000-88,000 | 90,7 | RFX550 | 2,00 |
| 3861184 | RFX720TCHS088115 | 88,000-115,000 | 113,7 | RFX720 | 4,00 |
- Spare Parts
fixing disc
catalogue number screw washer
| catalogue number | fixing screw | disc washer |
| RFX185TCHS022030 | 12147602700 | 12147600100 |
| RFX245TCHS030039 | 12147602300 | 12147603900 |
| RFX320TCHS039050 | 12147602400 | 12147600200 |
| RFX420TCHS050067 | 12147602500 | 12147604000 |
| RFX550TCHS067088 | 12147602600 | 12147600300 |
| RFX720TCHS088115 | 12147602800 | 12147600400 |
