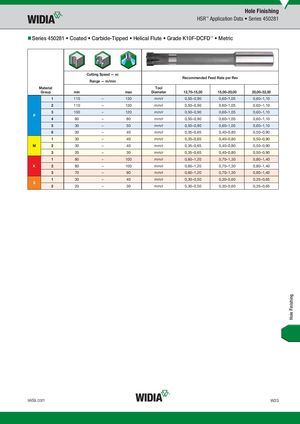

Series 450281 • Coated • Carbide-Tipped • Helical Flute • Grade K10F-DCFD™ • Metric
| Cutting Speed — Range — m/mi | vc n | Recommended F | eed Rate per Rev | |||
| Material Group | min | max | Tool Diameter | 12,70–15,00 | 15,00–20,00 | 20,00–32,00 |
| 1 | 110 – | 130 | mm/r | 0,50–0,90 | 0,60–1,05 | 0,60–1,10 |
| 2 | 110 – | 130 | mm/r | 0,50–0,90 | 0,60–1,05 | 0,60–1,10 |
| P 3 | 100 – | 120 | mm/r | 0,50–0,90 | 0,60–1,05 | 0,60–1,10 |
| 4 | 60 – | 80 | mm/r | 0,50–0,90 | 0,60–1,05 | 0,60–1,10 |
| 5 | 30 – | 50 | mm/r | 0,50–0,90 | 0,60–1,05 | 0,60–1,10 |
| 6 | 30 – | 40 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 1 | 30 – | 40 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| M 2 | 30 – | 40 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 3 | 20 – | 30 | mm/r | 0,35–0,65 | 0,40–0,80 | 0,50–0,90 |
| 1 | 80 – | 100 | mm/r | 0,60–1,20 | 0,70–1,30 | 0,80–1,40 |
| K 2 | 80 – | 100 | mm/r | 0,60–1,20 | 0,70–1,30 | 0,80–1,40 |
| 3 | 70 – | 90 | mm/r | 0,60–1,20 | 0,70–1,30 | 0,80–1,40 |
| S 1 | 30 – | 40 | mm/r | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
| 2 | 20 – | 30 | mm/r | 0,30–0,50 | 0,30–0,60 | 0,35–0,65 |
